Launch Tube Photos

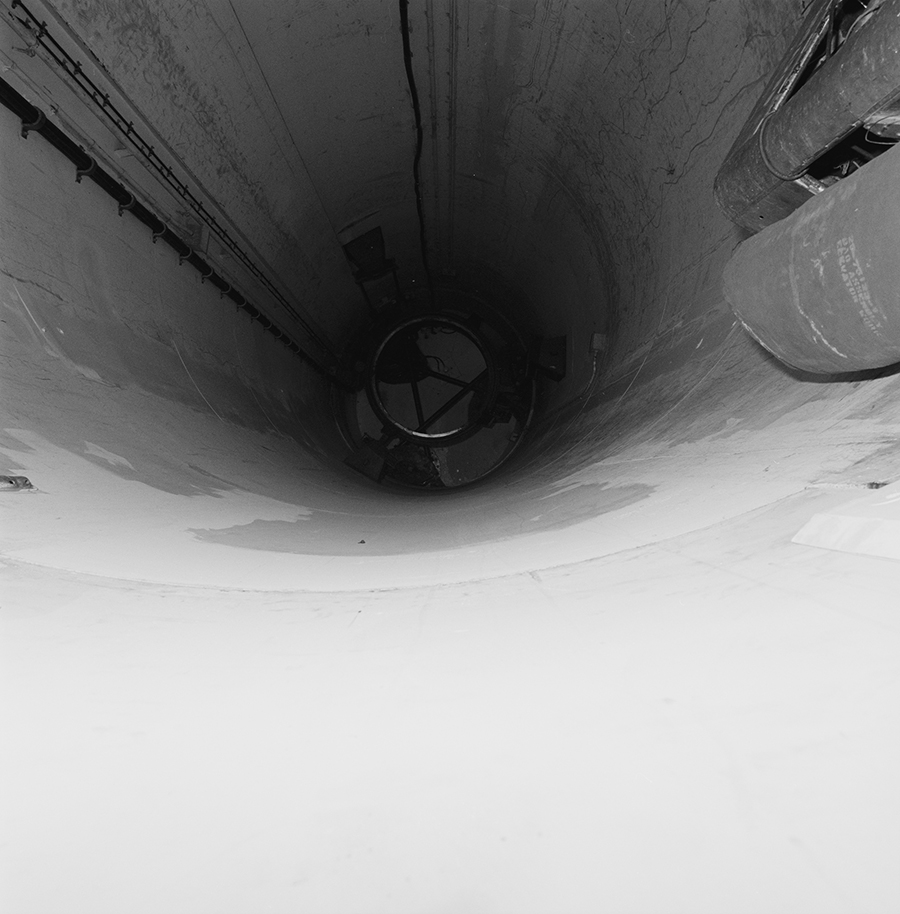

Empty Launch Tube

Inside An Empty Launch Tube

Click on the image for a larger view

The Launch Tube serves the purpose of a humidity and temperature controlled structure that provides a protective housing that combines both a launch support facility and structure. The Launch Tube also functions as a launch pad for the Minuteman missile. The Launch Facility is comprised of an underground Launch Tube (missile silo) that is surrounded by a cylindrical upper and lower equipment room providing the Launch Facility the capacity to house, monitor, and launch the missile within short notice. Thus the terminology - Minuteman missile. The Launch Tube is covered by a hardened, three and a half feet thick, Launcher Closure Door weighing 110 tons.

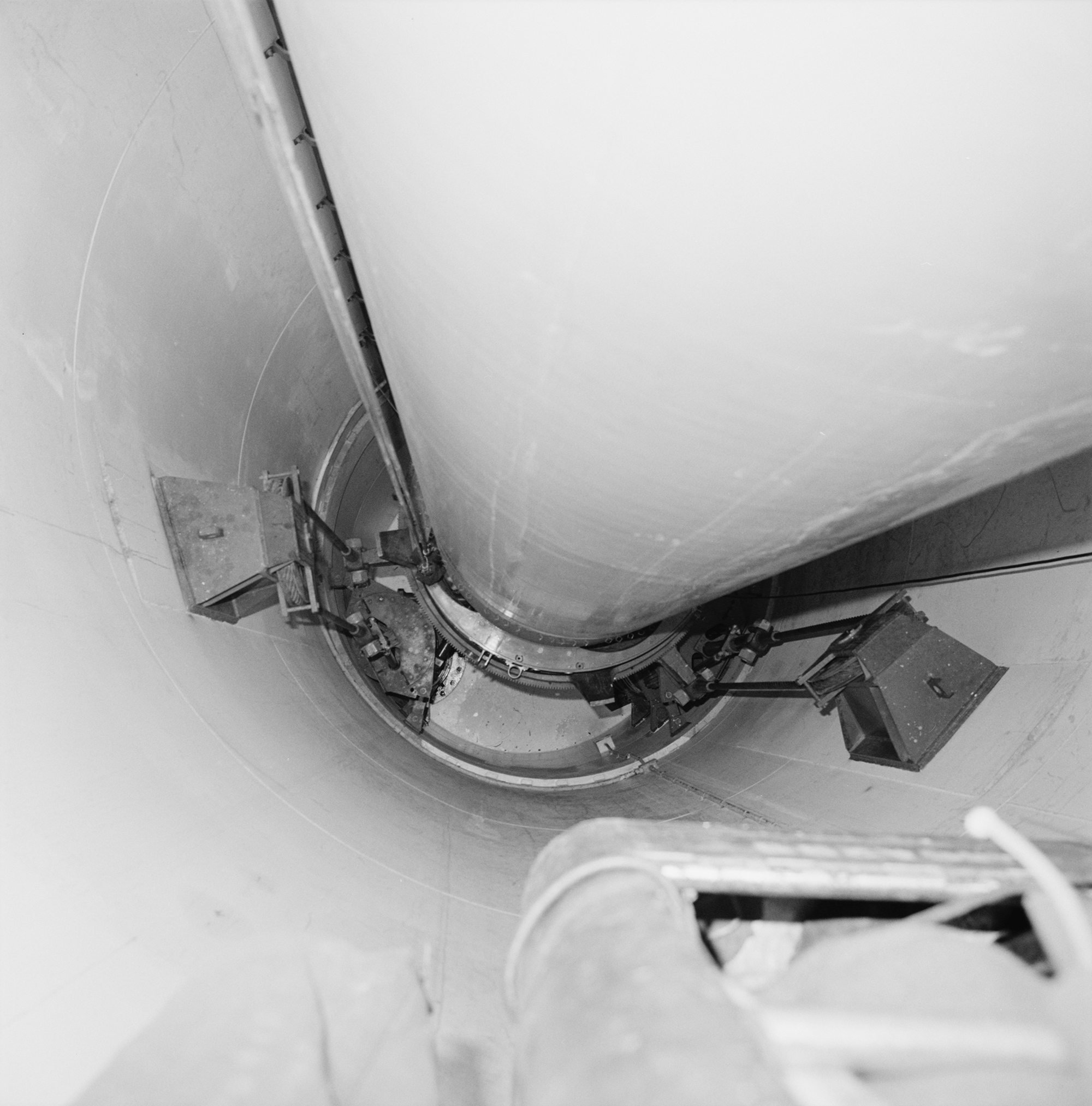

Missile With Shock Absorbeer Pulley Blocks

Missile With Shock Absorber Pulley Blocks

Click on the image for a larger view

Missile Suspension System

Located approximately 21 feet above the floor of the Launch Tube are a series of pulley blocks welded to the walls of the launch tube. These pulley blocks make up the three point suspension system that is designed to cushion and absorb any significant impact to the Launch Facility, protecting the Minuteman missile from any damage in the event of an enemy attack comprising of a nuclear detonation.

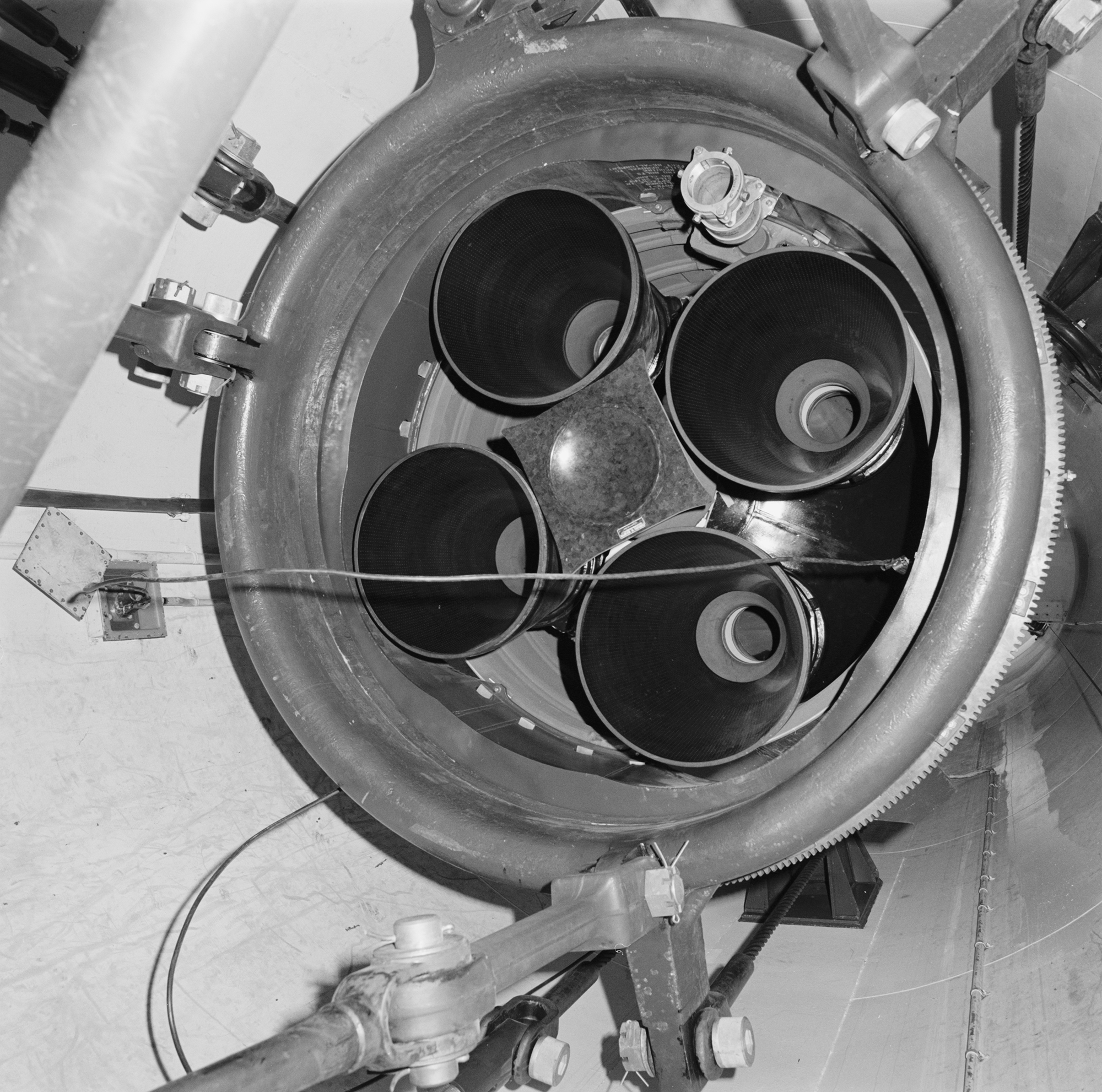

Missile Thrusters Sitting On Missile Ring

Missile Thrusters Sitting On The Missile Ring

Click on the image for a larger view

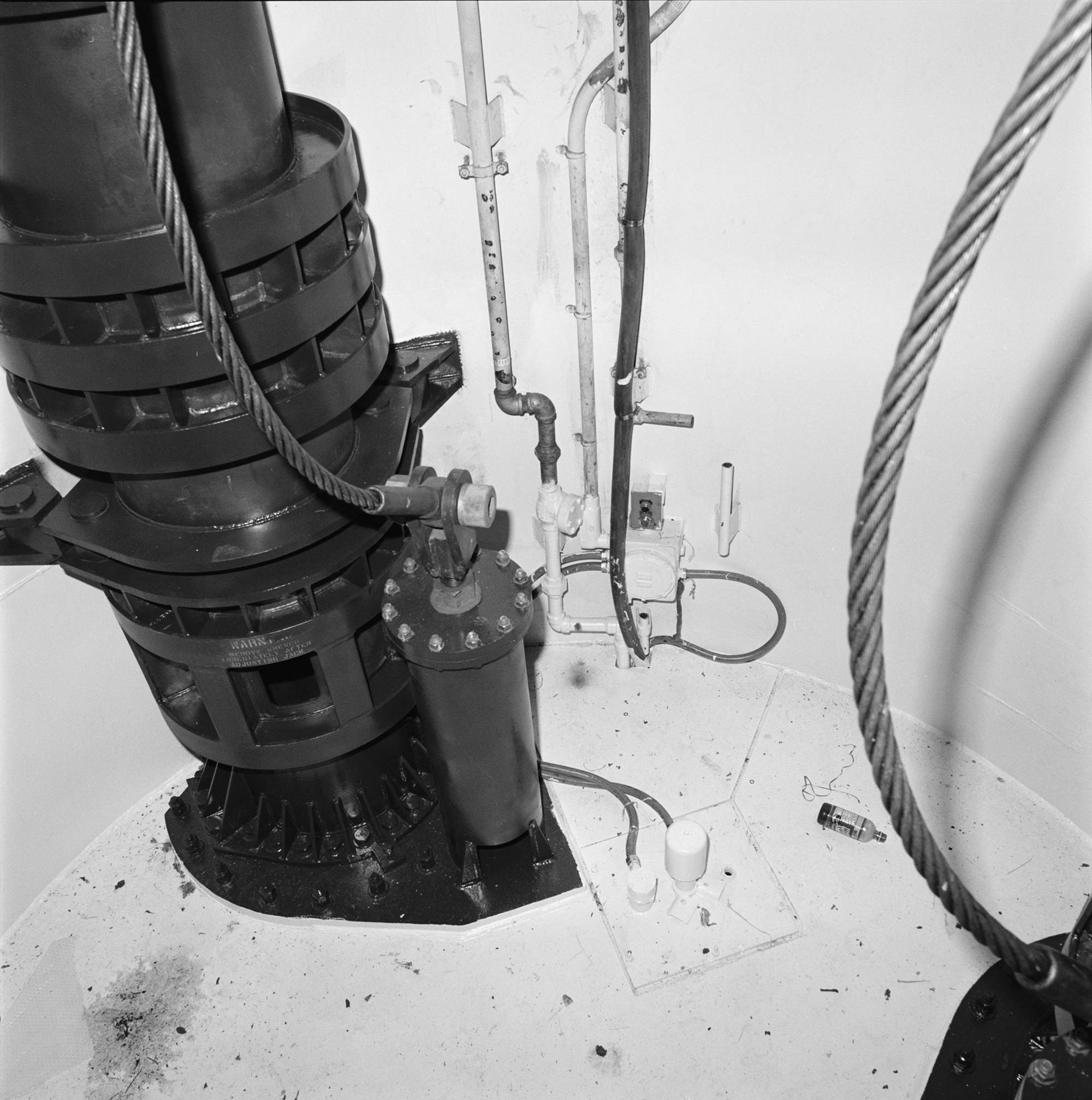

Bottom Of Missile Suspension Shock Absorber

View Of The Missile Suspension Shock Absorber - On The Bottom

Click on the image for a larger view

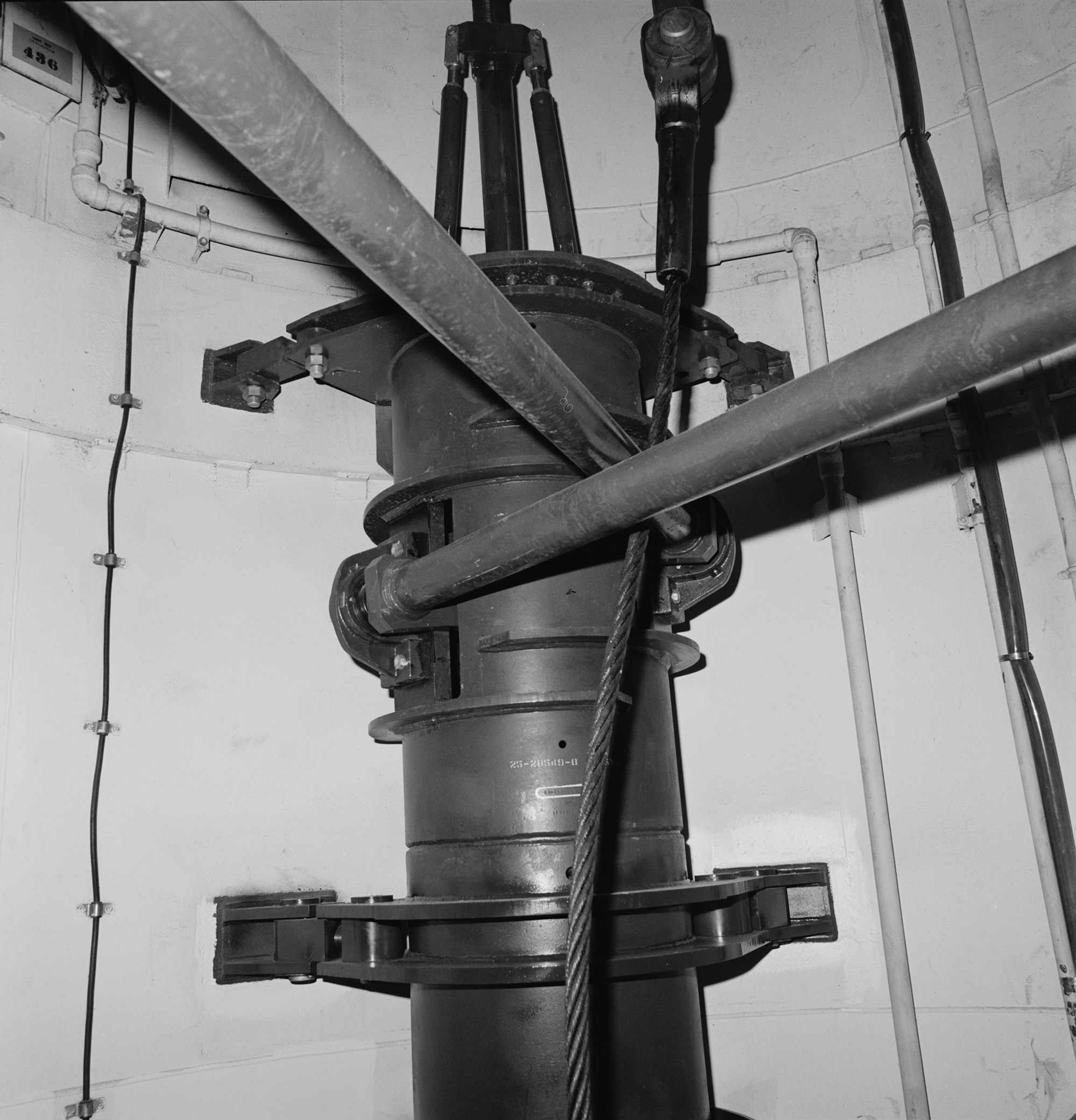

Top Of Missile Suspension Shock Absorber

View Of The Missile Suspension Shock Absorber - At The Top

Click on the image for a larger view

For more specific photos of the equipment housed in the upper and lower launcher equipment rooms, follow the links below.
